Ližinová řezačka Raimondi Raizor MTC

Product detailed description

Raimondi Raizor MTC is a top-of-the-line modular rail cutting system designed for precise cutting of ceramic tiles and large-format slabs. This professional tool is built to handle both standard and demanding cuts with maximum precision, efficiency, and safety. The system is ideal for professionals in the construction and tiling industries.

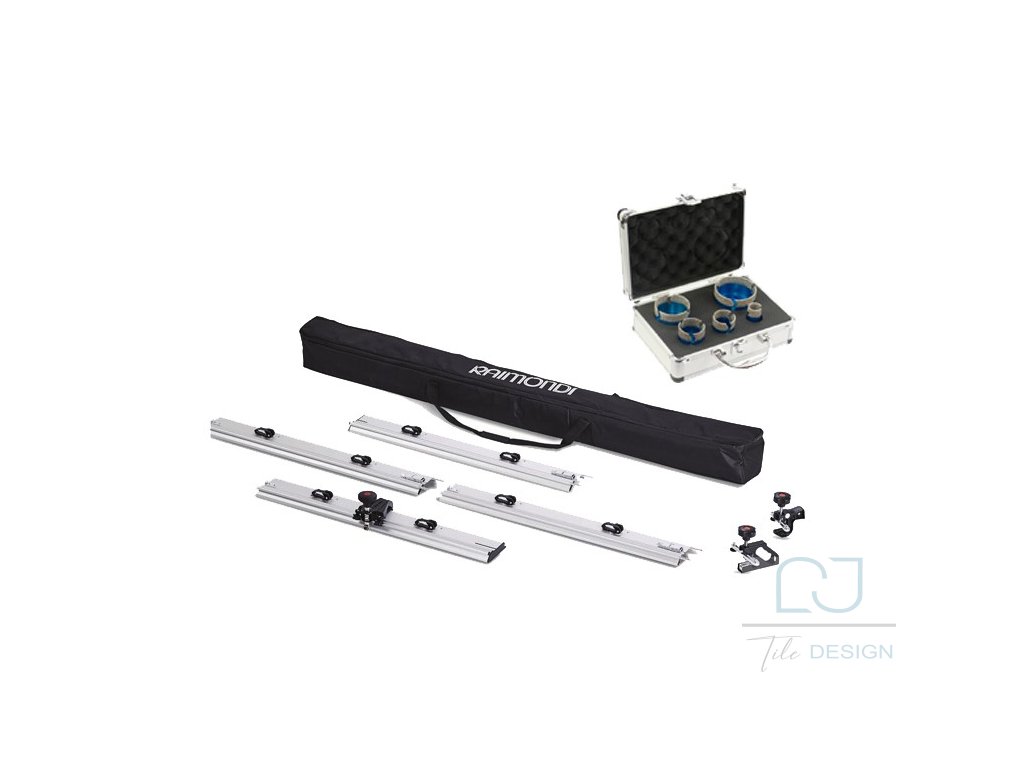

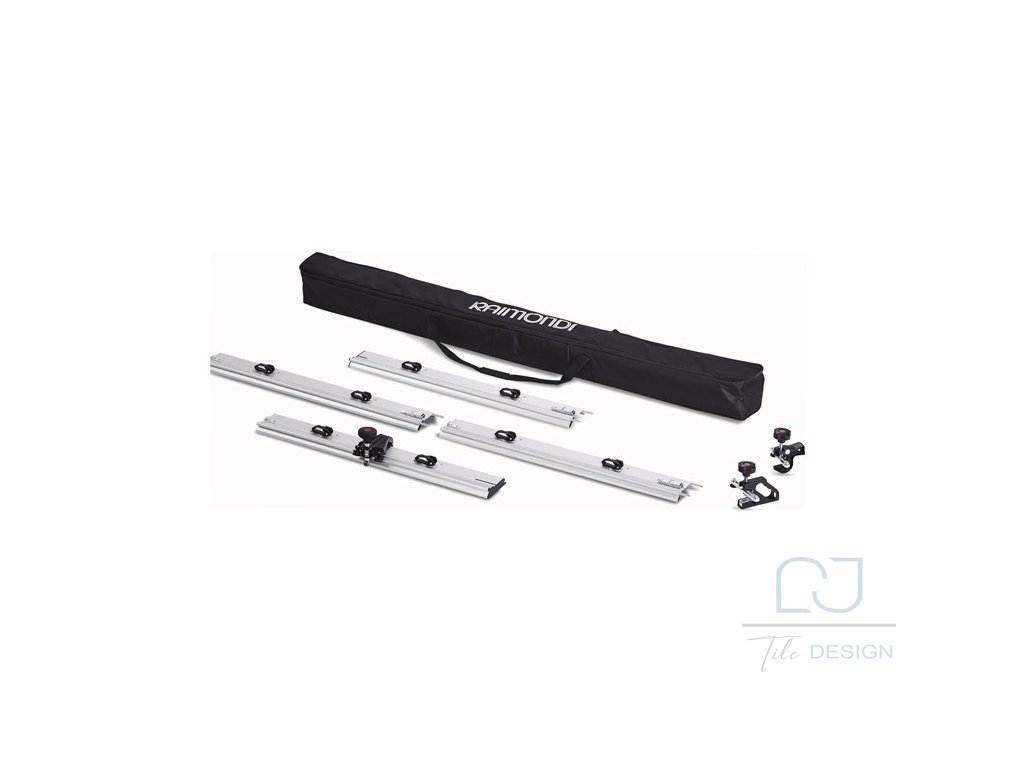

The key advantage of the Raimondi Raizor MTC is its modular design – four interconnectable rail guides allow cutting tiles and slabs up to 327 cm in length (with an optional extension up to 448 cm). Each rail is equipped with two double suction cups with a release lever, ensuring perfect system stability even on slightly textured surfaces. This makes the system ideal for large-format and extra-thick materials.

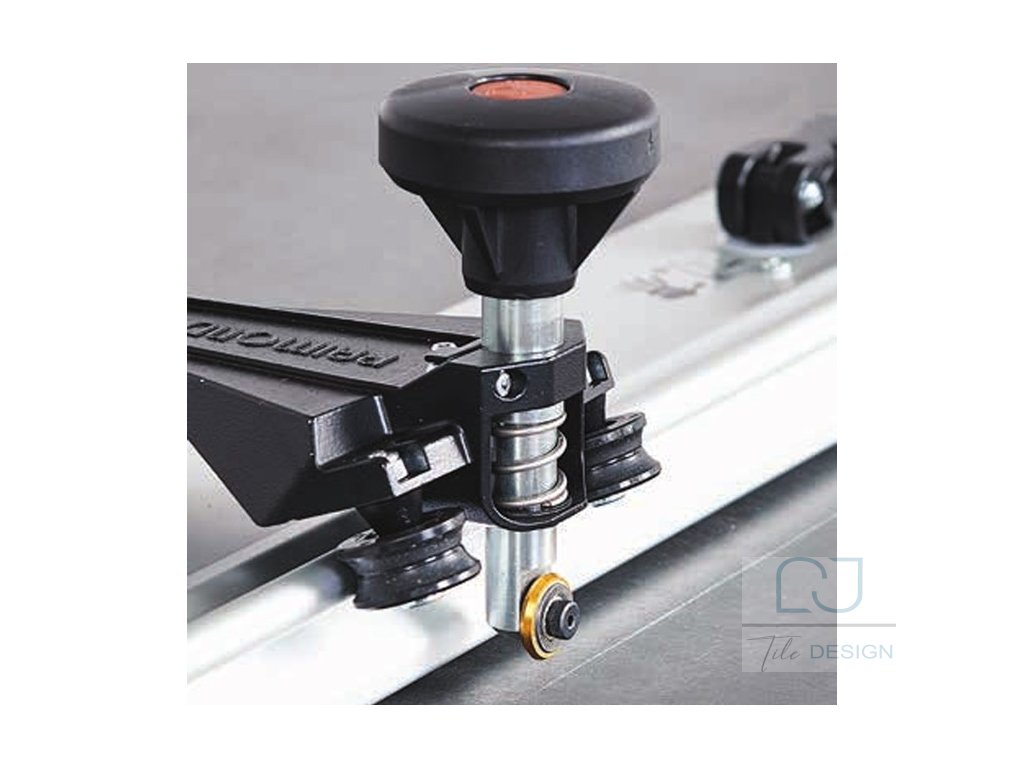

The cutting unit, made from die-cast aluminium, is fitted with a 20 mm diameter titanium-coated wheel with a bearing for a smooth and precise cut. A unique mechanism with three wheels and a double bearing ensures fluid movement. For breaking tiles, the set includes Premium pliers with progressive pressure, enabling precise and gentle snapping of tiles with a thickness of 3–15 mm.

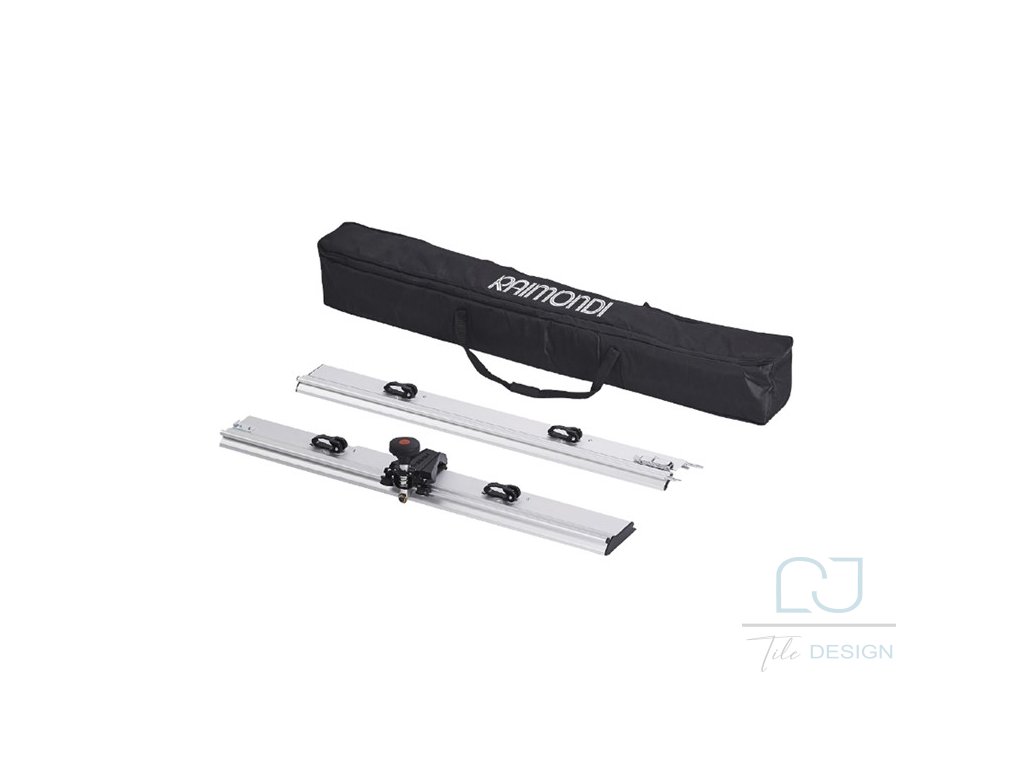

The entire system comes in a padded carrying bag with shoulder straps and tool pockets, ensuring easy and safe transport. The set is ready for immediate use directly on the construction site, in the workshop, or in the field. For expanded functionality, additional accessories are available – for example, extension rails or the Raimondi Power Raizor MKII cutting unit for diamond cutting at various angles (jolly edges).

Technical specifications

• Modular system: 4 rails, each for cuts up to 66 cm; connectable up to 327 cm (up to 448 cm with accessories)

• Cutting wheel: Ø 20 mm, titanium-coated, integrated bearing, quick change

• Cutting unit: Die-cast aluminium, 3 wheels with double bearing

• Pliers: Premium, progressive pressure, for tile thickness 3–15 mm, ergonomic handle

• Suction cups: 8 pcs (2 per rail), Ø 95 mm, non-marking, with release lever, 180° swivel handles

• Cutting distance from profile: 20 mm

• Construction: Extruded aluminium – high rigidity, low weight

• Carrying bag: Padded, with shoulder straps and pockets

• Optional accessories: 100 cm rail extension, special pliers for thicker tiles, Power Raizor MKII cutting unit
