Inspection System Tip-on MAXI | Invisible Access Panels up to 60x60 cm
Code: 860
Fast Dilivery
Order and pay by 10 AM via DPD for next-day delivery!
Related products
Product detailed description
📊 Technical Parameters
Max. door size: 60 x 60 cm
Depth adjustment: +/- 1 mm
Pop-out range: +/- 1.5 mm
Mounting method: Direct gluing onto tile

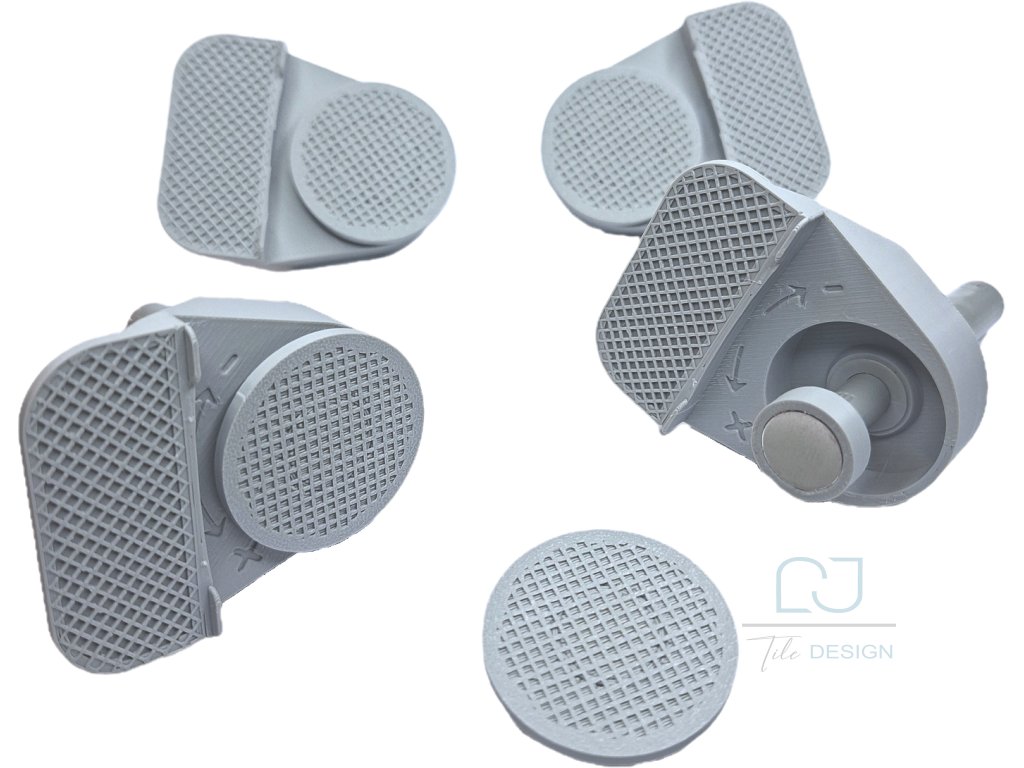

Package contents: 2x Tip-on magnet, 2x classic magnet
Application: Corner and flat installations
💡 Why choose this solution?

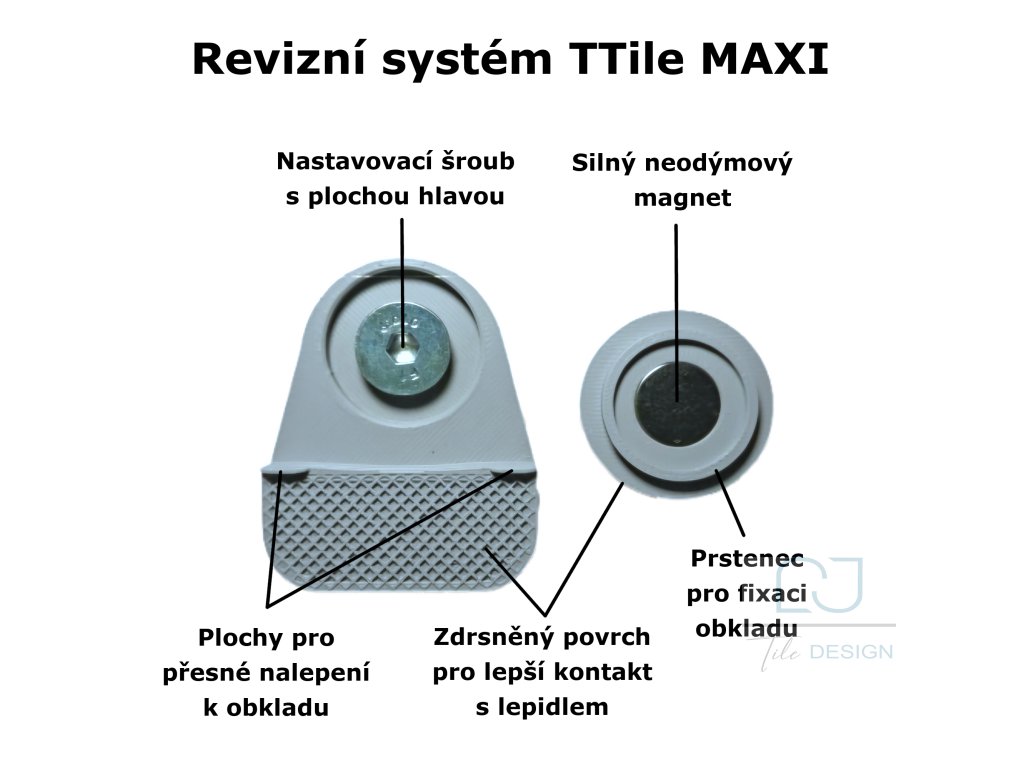

The Tip-on MAXI system is designed for demanding users and professional tilers. While standard magnets are unreliable for larger sizes and require external tools for opening, the MAXI version uses a strong magnetic core combined with a spring-loaded pop-out mechanism. The result is a precisely aligned surface that behaves like a solid wall but offers instant access to technical utilities.
🛠️ Professional TIP for installation: When gluing the magnets to the back of the tile, use a high-quality two-component epoxy or MS polymer. Before the adhesive sets, use the micro-screws on the magnets to set the exact depth so that the door aligns perfectly with the surrounding tiles to the tenth of a millimeter.
🔍 Expert insight: For large-format tiles, this system is invaluable. I recommend combining it with silicone in the color of the grout, which you cut at a 45° angle around the door perimeter. This creates a completely invisible joint that is also functional.
✅ Key Benefits
- Absolute aesthetics – no handles or visible frames.
- High stability even for heavy tiles up to 60x60 cm.
- Easy opening with a simple push (push-to-open).
⚠️ What to watch out for
- Do not use solid grout in the joint area (the door would not be pushable).
- Ensure precise degreasing of the back of the tile before gluing.
- Adhere to the maximum size of 60x60 cm for proper pop-out function.
Common Questions
What is the difference between a classic magnet and the MAXI version?
The MAXI version contains a special spring mechanism (Tip-on) that pushes the door forward after a press. Classic magnets require a suction cup to open.
Is installation possible in drywall (plasterboard)?
Yes, the magnets can be screwed to CD profiles or directly into the plasterboard using suitable wall plugs and then tiled over.
Can the magnets be adjusted if the tile is not straight?
Yes, the system allows for micro-adjustment in the range of +/- 1 mm, which is sufficient to level out minor substrate irregularities.
Additional parameters
| Category: | Under-tile flush buttons, |
|---|---|
| Warranty: | 2 years (Company 1 year) |
| Weight: | 0.3 kg |
